TOI-3798 (Transiting exoplanet)

RA: 08h 16m 27.57s, DE: +47° 01' 19.59" (124.1148662766, 47.0221069534)

Ucac4: UCAC4 686-050048, TwoMass: 2MASS J08162757+4701196, Toi: TOI-3798, Tic: TIC 22683951

11/20/2025, 23:36 - 11/21/2025, 04:19 (UTC)

Data:
  • Observer: Manfred Raetz
  • Created: 11/27/2025, 16:59 UTC
  • Station: Privatsternwarte Herges-Hallenberg
    Lat: +51°, Long: +11°
  • Instrument: SCT 280 / 1870 (C11 with Starizona reducer) CCD: MII G2-1600 filter : Astrodon ExoPlanet-BB (V to IR)
  • Photometric band: V to IR
  • Time standard: GJD
  • Brightness in: Flux
Note:
Exposure time of 240 s is achieved by combining two exposures of 120 s each
Determined transits
  • 2461000.562782 (11/21/2025, 01:30 UTC)
    Planet designation: TOI-3798 .01
    HJDmid: 2461000.565587 +/- 0.001307
    Heliocentric correction: 0.002805
    Transit depth (Mag): 0.020043 +/- 0.001362
    Transit duration (Min): 123.67 +/- 6.24
    Standard deviation (mmag): 3.01
    Data quality: 3 (good)
    Data density (data/min): 0.24
    Fitting algorithm: Original ETD
    Note:
    detrended with AstroImageJ 5.5.1.00
Actions:
Light curve

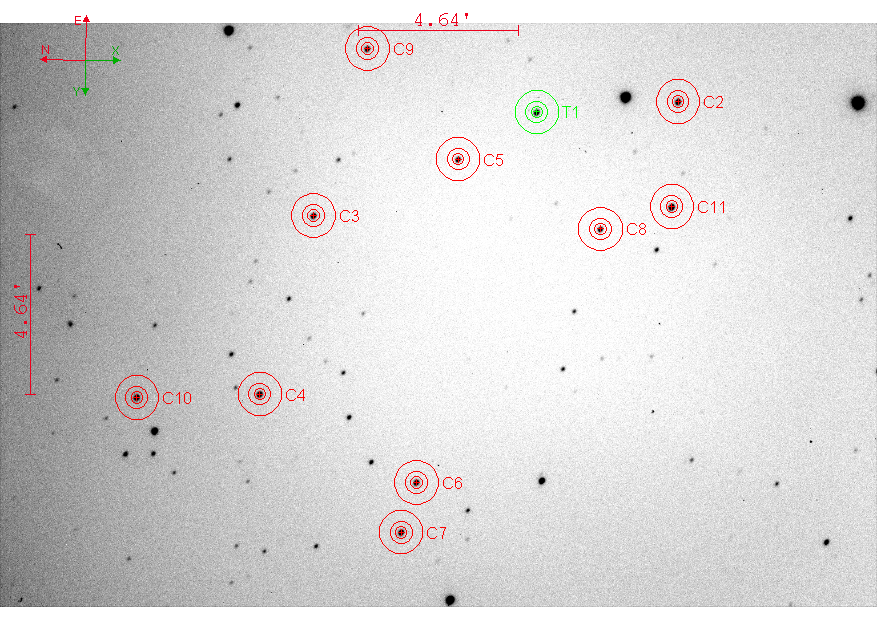

Field identification - Star field chart

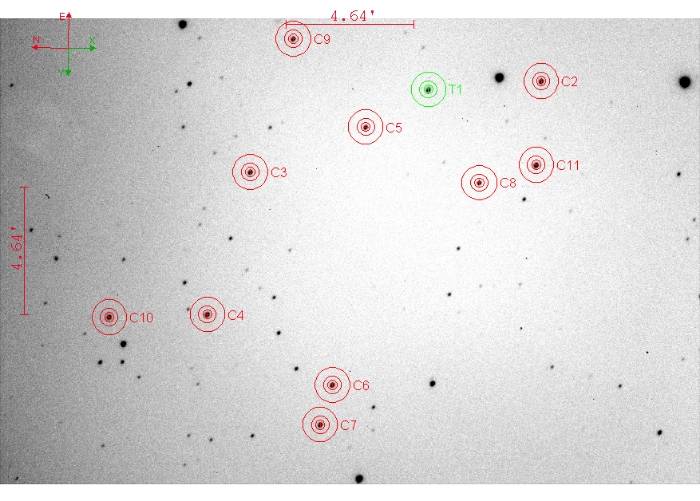

Chart - TOI-3798, JD 2461000.48397
Field identification - Explicitly named stars

No comparison or check stars are explicitly listed for this observation. They should be marked in the star field chart.
