HD189733

RA: 20h 00m 43.70s, DE: +22° 42' 39.00" (300.1820833333, 22.7108333333)

8/8/2018, 9:18 PM - 8/8/2018, 11:18 PM (UTC)

Data:

  • Observer: Anael Wunsche
  • Created: 8/9/2018 12:38:36 PM
  • Station: UAI B10 Baronnies Provençales Observatory
    Lat: +44°, Long: +05°
  • Instrument: RC 82 cm - CCD FLI PL230
  • Photometric band: R
  • Time standard: Gjd
  • Brightness in: Mag
Note:
GENERATED FROM TRANSIT id=5816
Determined transits
  • 2458339.42541 (8/8/2018, 22:12)
    Tresca ID: 1533803916
    Planet designation: HD189733 b
    HJDmid: 2458339.42971 +/- 0.00027
    Heliocentric correction: 0.00430
    Transit depth (Mag): 0.02640 +/- 0.00080
    Transit duration (Min): 106.60 +/- 1.20
    Standard deviation (mmag): 1.3
    Data quality index: 1
    Data density (data/min): 0.48
    Fitting algorithm: Original ETD
    Note:
    Ha filter binning 1x1 exposure 120 sec defocused and multi comparison stars
Actions:

Light curve

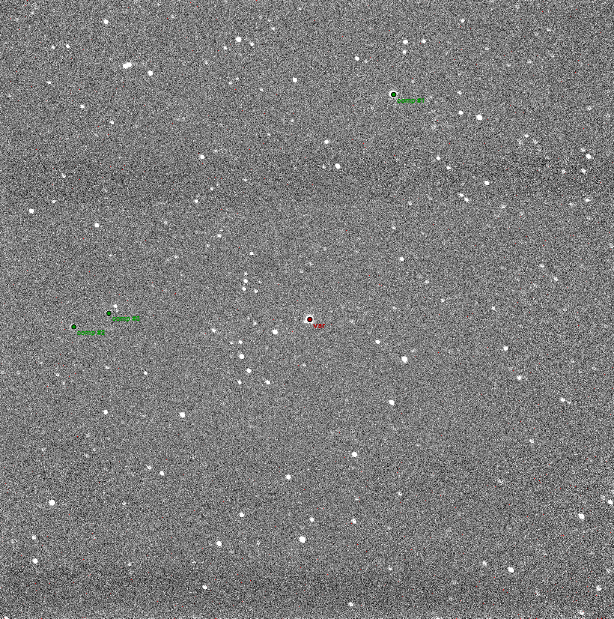

Neighborhood of the object, comparison and check stars
