KELT-20 (Transiting exoplanet)

RA: 19h 38m 38.74s, DE: +31° 13' 09.21" (294.6613966617, 31.2192263882)

7/12/2018, 23:52 - 7/13/2018, 03:17 (UTC)

Data:
  • Observer: Pere Guerra
  • Created by: admin
  • Created: 7/13/2018, 22:03
  • Station: Observatori Astronomic Albanyà
    Lat: +42°, Long: +02°
  • Instrument: 16" Meade ACF F8 Moravian G4-9000
  • Photometric band: V
  • Time standard: Hjd
  • Brightness in: Mag
Note:
GENERATED FROM TRANSIT id=17946
Determined transits
  • 2458312.60312 (7/13/2018, 02:28)
    Tresca ID: 1531505029
    Planet designation: KELT-20 b
    HJDmid: 2458312.60664 +/- 0.00745
    Heliocentric correction: 0.00352
    Transit depth (Mag): 0.04270 +/- 0.01340
    Transit duration (Min): 336.60 +/- 34.50
    Standard deviation (mmag): 3.6
    Data quality: 1 (excellent)
    Data density (data/min): 2.23
    Fitting algorithm: Original ETD
    Note:
    Slightly defocused, 1x1 binning. Ended measurement as dawn approached
Actions:
Light curve

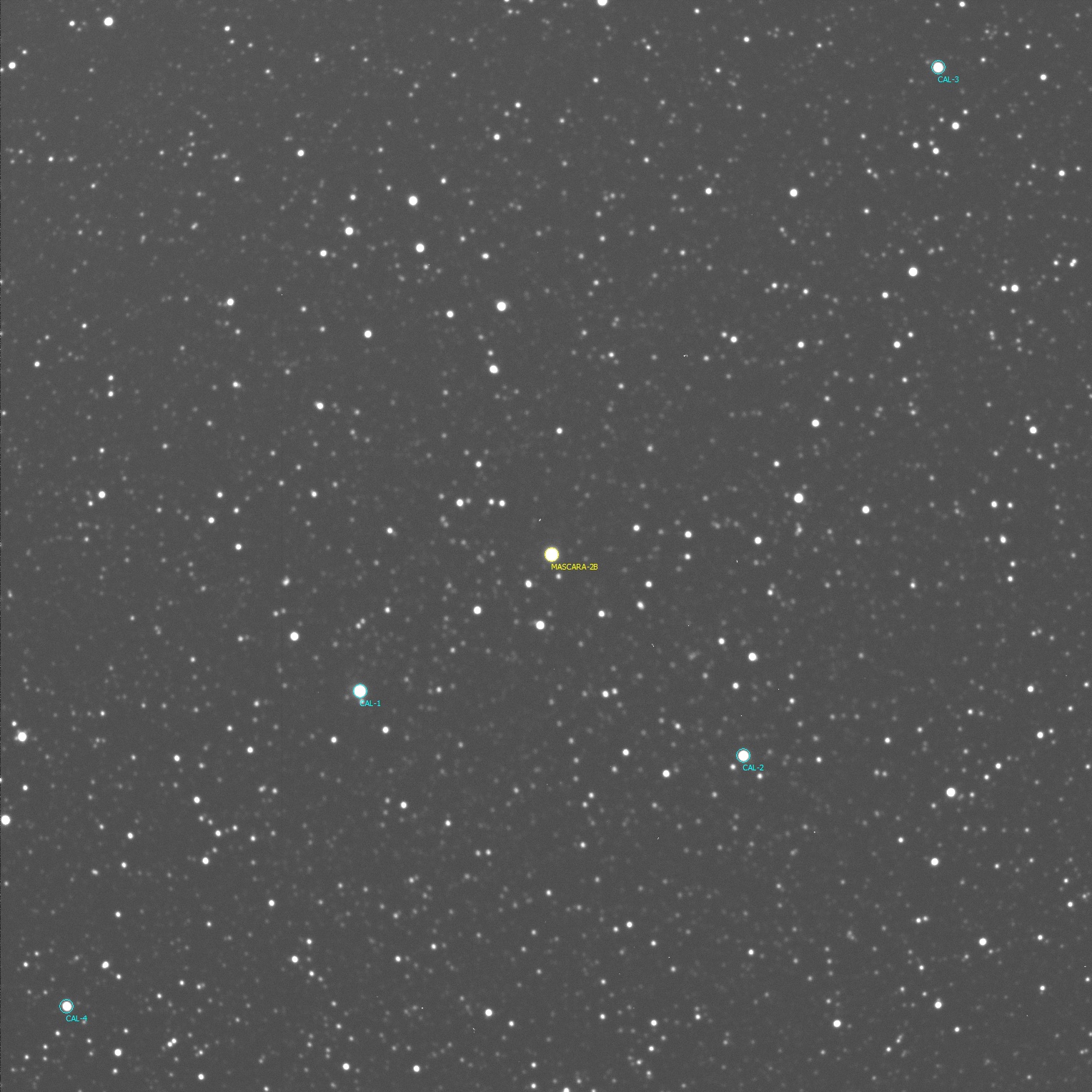

Neighborhood of the object, comparison and check stars

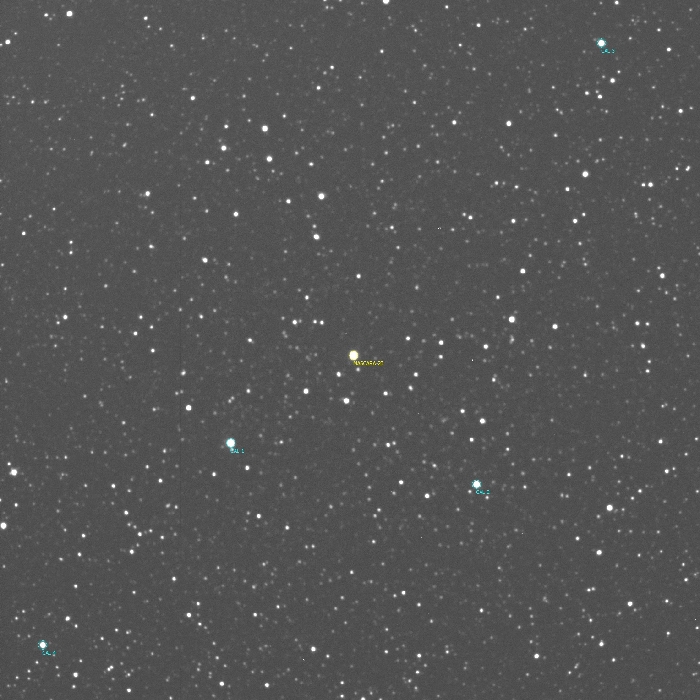

Chart - KELT-20, JD 2458312.49507
